Material¶

Material(params: Dict, rid: RiiDataFrame)

This class provides the dielectric function for the material specified by given id. If the argument bound_check is True, ValueError is raised when the wavelength exeeds the domain of experimental data.

params can includes the following parameters, * ‘PEC’ (bool): True if you want to create perfect electric conductor. Defaults to False. * ‘id’ (int): ID number. * ‘book’ (str): book value in catalog of RiiDataFrame. * ‘page’ (str): page value in catalog of RiiDataFrame. * ‘RI’ (complex): Constant refractive index. * ‘e’ (complex): Constant permittivity. * ‘bound_check’ (bool): True if bound check should be done. Defaults to True. * ‘im_factor’ (floot): A magnification factor multiplied to the imaginary part of permittivity. Defaults to 1.0.

This class extends the functionality of refractiveindex.info database: * It is possible to define dielectric materials that has constant permittivity. * Imaginary part of dielectric function can be magnified using ‘im_factor’ parameter. * Perfect Electric Conductor is defined as an artificial metal labeled “PEC”, which has negative large permittivity (-1e8). * Material is callable with a single value argument, angular frequency argument ω. The evaluation process is omitted if it is called with the same argument.

However, n, k and eps methos of this class are not numpy.ufunc. You can pass them only a single value.

[1]:

import riip
rid = riip.RiiDataFrame()
water = riip.Material({'id': 428}, rid)
print(f"{water.catalog['book']} {water.catalog['page']}")
print(f"{water.catalog['wl_min']} <= λ <= {water.catalog['wl_max']}")

H2O Kedenburg
0.5 <= λ <= 1.6

Reflactive Index n¶

n(wl: ArrayLike) -> numpy.ndarray

Extinction Coefficient k¶

k(wl: ArrayLike) -> numpy.ndarray

Dielectric Function eps¶

eps(wl: ArrayLike) -> numpy.ndarray

Wavelengths wl can be given as a single complex value or an array of complex values.

[2]:

wl = 1.0
n = water.n(wl)
k = water.k(wl)
eps = water.eps(wl)
print(f"At λ={wl}μm:")
print(f"  n={n}")
print(f"  k={k}")
print(f"  ε={eps}")

At λ=1.0μm:
  n=1.3248733548067675
  k=3.19106e-06
  ε=(1.755289406266756+8.455500735179367e-06j)

[3]:

import numpy as np
wls = np.linspace(0.5, 1.6)
water.eps(wls)

[3]:

array([1.78768541+5.06456045e-09j, 1.78467437+7.21950025e-09j,
       1.78200425+8.99754271e-09j, 1.77961713+1.09102698e-08j,
       1.77746656+2.03113563e-08j, 1.77551486+3.91535344e-08j,
       1.77373123+4.47077445e-08j, 1.77209021+5.56005984e-08j,
       1.77057063+6.46501807e-08j, 1.76915476+9.55056185e-08j,
       1.7678276 +2.26868439e-07j, 1.76657643+4.36021486e-07j,
       1.76539035+4.41922590e-07j, 1.76425999+3.89027525e-07j,
       1.76317722+3.67388011e-07j, 1.76213497+6.57253550e-07j,
       1.76112705+7.97415508e-07j, 1.76014799+9.89969106e-07j,
       1.75919296+1.26250250e-06j, 1.75825763+2.11244636e-06j,
       1.75733815+5.56056753e-06j, 1.75643103+9.70031959e-06j,
       1.75553309+9.02328728e-06j, 1.75464145+6.69232642e-06j,
       1.75375346+4.42093740e-06j, 1.75286666+3.28209305e-06j,
       1.75197876+3.47609423e-06j, 1.75108763+4.87738786e-06j,
       1.75019124+7.76228825e-06j, 1.74928768+2.36478431e-05j,
       1.74837512+2.93429550e-05j, 1.74745178+3.16985983e-05j,
       1.74651595+3.12607352e-05j, 1.74556597+2.98356487e-05j,
       1.74460019+2.88555665e-05j, 1.74361698+3.09339742e-05j,
       1.74261474+4.08467397e-05j, 1.74159184+6.27300492e-05j,
       1.74054666+9.18714875e-05j, 1.73947755+1.38702502e-04j,
       1.73838282+4.13708061e-04j, 1.73726075+7.41230462e-04j,
       1.73610964+8.38403369e-04j, 1.73492768+8.44002149e-04j,
       1.733713  +7.56141792e-04j, 1.73246365+6.09350408e-04j,
       1.73117757+4.73925199e-04j, 1.72985267+3.73919563e-04j,
       1.72848673+2.96302134e-04j, 1.72707742+2.57348869e-04j])

Bound_check¶

By default, bound_check is set to True, so a ValueError is raised if the given range of wavelength exeeds the domain of experimental data.

[4]:

wls = np.linspace(1.0, 2.0)  # exeeds the domain of experimental data [wl_min, wl_max]
water = riip.Material({'id': 428}, rid)
try:
    water.eps(wls)
except ValueError as e:
    print("ValueError: ", e)

ValueError:  Wavelength [1.0 2.0] is out of bounds [0.5 1.6][um]

If the instance is created with bound_check=False, the dispersion formula is applied beyond the scope of experimental data.

[5]:

water = rid.material({'id': 428, 'bound_check': False})
water.eps(wls)

[5]:

array([1.75528941+8.45550074e-06j, 1.7544798 +6.22893490e-06j,
       1.75367283+4.26892778e-06j, 1.75286666+3.28209305e-06j,
       1.75205958+3.41188666e-06j, 1.75124999+4.57539106e-06j,
       1.75043634+6.43134767e-06j, 1.7496172 +1.73160612e-05j,
       1.74879115+2.79025978e-05j, 1.74795686+3.03918467e-05j,
       1.74711301+3.16703375e-05j, 1.74625834+3.09070644e-05j,
       1.7453916 +2.95904633e-05j, 1.74451155+2.86968989e-05j,
       1.74361698+3.09339742e-05j, 1.74270668+3.94542665e-05j,
       1.74177943+5.74325463e-05j, 1.74083401+8.45269696e-05j,
       1.73986919+1.12246506e-04j, 1.73888371+2.38921633e-04j,
       1.73787627+5.97613782e-04j, 1.73684562+7.93140670e-04j,
       1.73579043+8.44665108e-04j, 1.73470932+8.36243635e-04j,
       1.73360089+7.44723123e-04j, 1.73246365+6.09350408e-04j,
       1.73129606+4.84068764e-04j, 1.73009655+3.87256134e-04j,
       1.72886346+3.09978552e-04j, 1.72759506+2.69595315e-04j,
       1.72628955+2.42393493e-04j, 1.72494502+2.23707734e-04j,
       1.72355948+2.11564992e-04j, 1.72213081+2.07050164e-04j,
       1.72065679+2.04337134e-04j, 1.71913506+2.14436168e-04j,
       1.71756312+2.22823398e-04j, 1.71593832+2.66788134e-04j,
       1.71425585+3.72193172e-03j, 1.71246452+1.92713886e-02j,
       1.71025874+5.60435002e-02j, 1.7066329 +1.23145225e-01j,
       1.69919123+2.29660129e-01j, 1.68321308+3.84646155e-01j,
       1.65047355+5.97133116e-01j, 1.58781969+8.76119910e-01j,
       1.47550197+1.23057138e+00j, 1.28526127+1.66941483e+00j,
       0.97817128+2.20153602e+00j, 0.50223629+2.83577478e+00j])

plot¶

plot(wls: Sequence | np.ndarray, comp: str = "n", fmt1: Optional[str] = "-", fmt2: Optional[str] = "--", **kwargs)

wls (Sequence | np.ndarray): Wavelength coordinates to be plotted [μm].
comp (str): ‘n’, ‘k’ or ‘eps’
fmt1 (Optional[str]): Plot format for n and Re(eps).
fmt2 (Optional[str]): Plot format for k and Im(eps).

Plot refractive index (if set comp=”n”), extinction coefficient (comp=”k”) or permittivity (comp=”eps”).

[6]:

import matplotlib.pyplot as plt
water.plot(wls, "n")
plt.show()
water.plot(wls, "k")
plt.show()
water.plot(wls, "eps")

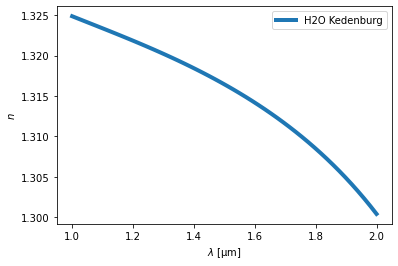

../_images/notebooks_03_Material_10_0.png

../_images/notebooks_03_Material_10_1.png

../_images/notebooks_03_Material_10_2.png

You can change plot style usint rcParams.

[7]:

plt.style.use('seaborn-notebook')
plot_params = {
    'figure.figsize': [6.0, 6.0],
    'axes.labelsize': 'xx-large',
    'xtick.labelsize': 'x-large',
    'ytick.labelsize': 'x-large',
    'legend.fontsize': 'x-large',
}
plt.rcParams.update(plot_params)

[8]:

water.plot(wls, "n")

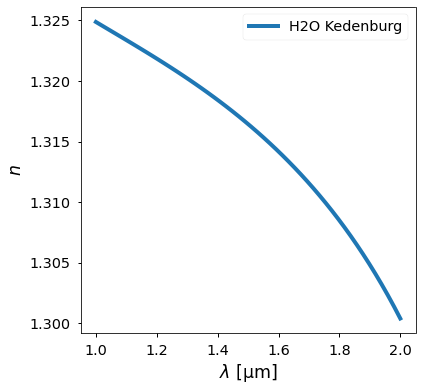

../_images/notebooks_03_Material_13_0.png

Water with constant RI¶

[9]:

import numpy as np
from riip import Material
water_const = Material({'RI': 1.333})
wl = [0.5, 1.0, 1.5]
n = water_const.n(wl)
k = water_const.k(wl)
eps = water_const.eps(wl)
print(f"At λ={wl}μm:")
print(f"  n={n}")
print(f"  k={k}")
print(f"  ε={eps}")

At λ=[0.5, 1.0, 1.5]μm:
  n=[1.333 1.333 1.333]
  k=[0. 0. 0.]
  ε=[1.776889+0.j 1.776889+0.j 1.776889+0.j]

A definition of water in RIID¶

[10]:

water = Material({"book": "H2O", "page": "Kedenburg"})
wl = [0.5, 1.0, 1.5]
n = water.n(wl)
k = water.k(wl)
eps = water.eps(wl)
print(f"At λ={wl} μm:")
print(f"  n={n}")
print(f"  k={k}")
print(f"  ε={eps}")

At λ=[0.5, 1.0, 1.5] μm:
  n=[1.33704353 1.32487335 1.31644826]
  k=[1.89394e-09 3.19106e-06 2.56637e-04]
  ε=[1.78768541+5.06456045e-09j 1.75528941+8.45550074e-06j
 1.73303596+6.75698666e-04j]

Plot them:¶

[11]:

wls = np.linspace(0.6, 1.0)
water_const.plot(wls)
water.plot(wls)

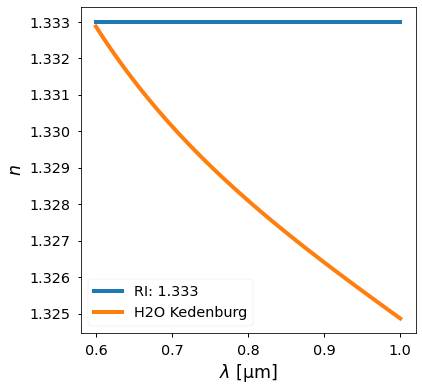

../_images/notebooks_03_Material_20_0.png

Material as a function¶

Material__call__(w: float | complex) -> complex

w (float | complex): A float indicating the angular frequency

It returns the complex relative permittivity at given angular frequency w. We use a unit system where the speed of light in vacuum c is 1 and the unit of length is μm. So w is equal to the vacuum wavenumber ω/c [rad/μm]).

It is much faster than eps method because the formula is accelerated using cython. In the case of same argument, it’s even more faster.

[12]:

gold = Material({'book': 'Au', 'page': 'Stewart-DLF'})
wls = [1.0, 1.5]
ws = [2 * np.pi / wl for wl in wls]

[13]:

%%timeit
for i in range(1000):
    gold.eps(wls[i % 2])

71.4 ms ± 4.03 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)

[14]:

%%timeit
for i in range(1000):
    gold.eps(wls[0])

68.5 ms ± 4.88 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)

[15]:

%%timeit
for i in range(1000):
    gold(ws[i % 2])

2.83 ms ± 91 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)

[16]:

%%timeit
for i in range(1000):
    gold(ws[0])

286 µs ± 15.8 µs per loop (mean ± std. dev. of 7 runs, 1000 loops each)

However, Material is not a numpy.ufunc¶

[17]:

try:
    gold(np.array(ws))
except ValueError as e:
    print("ValueError: ", e)

ValueError:  The truth value of an array with more than one element is ambiguous. Use a.any() or a.all()

im_factor¶

[18]:

gold_low_loss = Material({'book': 'Au', 'page': 'Stewart-DLF', 'im_factor': 0.1})
print("If im_factor=1.0: Im(ε)=", gold(6.28).imag)
print("If im_factor=0.1: Im(ε)=", gold_low_loss(6.28).imag)

print("Real parts are the same")
print(gold(6.28).real, gold_low_loss(6.28).real)

If im_factor=1.0: Im(ε)= 3.3309657708104403
If im_factor=0.1: Im(ε)= 0.33309657708104407
Real parts are the same
-46.60902219575364 -46.60902219575364

PEC¶

[19]:

pec = Material({"PEC": True})
print(pec.label, pec(1.0))

PEC (-100000000+0j)
