Examples¶

[1]:

import numpy as np
import matplotlib.pyplot as plt
from IPython.display import display
import riip

rid = riip.RiiDataFrame()
plt.style.use('seaborn-notebook')
plot_params = {
    'figure.figsize': [8.0, 8.0],
    'axes.labelsize': 'xx-large',

    'xtick.labelsize': 'xx-large',
    'ytick.labelsize': 'xx-large',
    'legend.fontsize': 'xx-large',
    # 'legend.handlelength': 2.0,
}
plt.rcParams.update(plot_params)
props = plt.rcParams['axes.prop_cycle']

Ag¶

[2]:

rid.search('Ag')

[2]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
0	Ag	Experimental data: bulk, thick film	Johnson	0	nk	0.1879	1.937
1	Ag	Experimental data: bulk, thick film	Choi	0	nk	1.2310	6.988
2	Ag	Experimental data: bulk, thick film	Jiang	0	nk	0.3000	2.000
3	Ag	Experimental data: bulk, thick film	Yang	0	nk	0.2700	24.920
4	Ag	Experimental data: bulk, thick film	McPeak	0	nk	0.3000	1.700
...	...	...	...	...	...	...	...
2769	Mg-LiTaO3		Moutzouris-e	3	f	0.4500	1.551
2885	Ag		Rakic-DLF	21	f	0.2066	12.400
2886	Ag		Vial-DLF	21	f	0.4000	1.000
2887	Ag		Lee-DLF	21	f	0.2500	1.000
2901	Ag		Rakic-BBF	22	f	0.2066	12.400

68 rows × 7 columns

[3]:

Ag_id_list = [0, 4, 2885, 2886, 2887]
rid.show(Ag_id_list)

[3]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
0	Ag	Experimental data: bulk, thick film	Johnson	0	nk	0.1879	1.937
4	Ag	Experimental data: bulk, thick film	McPeak	0	nk	0.3000	1.700
2885	Ag		Rakic-DLF	21	f	0.2066	12.400
2886	Ag		Vial-DLF	21	f	0.4000	1.000
2887	Ag		Lee-DLF	21	f	0.2500	1.000

Dielectric function¶

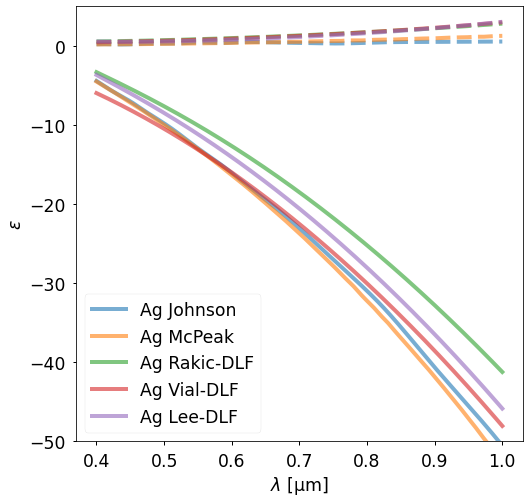

[4]:

wls = np.linspace(0.4, 1.0, 200)
for idx in Ag_id_list:
    Ag = rid.material({'id': idx})
    Ag.plot(wls, 'eps', alpha=0.6)
plt.ylim(-50, 5)
plt.show()

../_images/notebooks_04_examples_6_0.png

Au¶

[5]:

rid.search('Au')

[5]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
69	Au	Experimental data: bulk, thick film	Johnson	0	nk	0.187900	1.937000
70	Au	Experimental data: bulk, thick film	McPeak	0	nk	0.300000	1.700000
71	Au	Experimental data: bulk, thick film	Babar	0	nk	0.206600	12.400000
72	Au	Experimental data: bulk, thick film	Olmon-ev	0	nk	0.300000	24.930000
73	Au	Experimental data: bulk, thick film	Olmon-sc	0	nk	0.300000	24.930000
74	Au	Experimental data: bulk, thick film	Olmon-ts	0	nk	0.300000	24.930000
75	Au	Experimental data: bulk, thick film	Werner	0	nk	0.017586	2.479684
76	Au	Experimental data: bulk, thick film	Windt	0	nk	0.002360	0.121570
77	Au	Experimental data: bulk, thick film	Ordal	0	nk	0.667000	286.000000
78	Au	Experimental data: bulk, thick film	Hagemann	0	nk	0.000008	248.000000
79	Au	Experimental data: bulk, thick film	Hagemann-2	0	nk	0.003542	0.826600
80	Au	Experimental data: thin film	Yakubovsky-25nm	0	nk	0.300000	2.000000
81	Au	Experimental data: thin film	Yakubovsky-53nm	0	nk	0.300000	2.000000
82	Au	Experimental data: thin film	Yakubovsky-117nm	0	nk	0.300000	2.000000
83	Au	Experimental data: thin film	Rosenblatt-11nm	0	nk	0.300000	2.000000
84	Au	Experimental data: thin film	Rosenblatt-21nm	0	nk	0.300000	2.000000
85	Au	Experimental data: thin film	Rosenblatt-44nm	0	nk	0.250000	2.000000
86	Au	Experimental data: thin film	Yakubovsky-4nm	0	nk	0.300000	3.300000
87	Au	Experimental data: thin film	Yakubovsky-6nm	0	nk	0.300000	3.300000
88	Au	Experimental data: thin film	Yakubovsky-9nm	0	nk	0.300000	3.300000
89	Au	Experimental data: thin film	Ciesielski	0	nk	0.190770	20.912000
90	Au	Experimental data: thin film	Ciesielski-Ge	0	nk	0.190770	20.912000
91	Au	Experimental data: thin film	Lemarchand-3.96nm	0	nk	0.350000	1.800000
92	Au	Experimental data: thin film	Lemarchand-4.62nm	0	nk	0.350000	1.800000
93	Au	Experimental data: thin film	Lemarchand-5.77nm	0	nk	0.350000	1.800000
94	Au	Experimental data: thin film	Lemarchand-11.7nm	0	nk	0.350000	1.800000
95	Au	Models and simulations	Rakic-BB	0	nk	0.247970	6.199200
96	Au	Models and simulations	Rakic-LD	0	nk	0.247970	6.199200
97	Au	Models and simulations	Werner-DFT	0	nk	0.017586	2.479684
2683	Au-Ag		Rioux-Au100Ag0	0	nk	0.270000	1.200000
2684	Au-Ag		Rioux-Au90Ag10	0	nk	0.270000	1.200000
2685	Au-Ag		Rioux-Au80Ag20	0	nk	0.270000	1.200000
2686	Au-Ag		Rioux-Au70Ag30	0	nk	0.270000	1.200000
2687	Au-Ag		Rioux-Au60Ag40	0	nk	0.270000	1.200000
2688	Au-Ag		Rioux-Au50Ag50	0	nk	0.270000	1.200000
2689	Au-Ag		Rioux-Au40Ag60	0	nk	0.270000	1.200000
2690	Au-Ag		Rioux-Au30Ag70	0	nk	0.270000	1.200000
2691	Au-Ag		Rioux-Au20Ag80	0	nk	0.270000	1.200000
2692	Au-Ag		Rioux-Au10Ag90	0	nk	0.270000	1.200000
2693	Au-Ag		Rioux-Au0Ag100	0	nk	0.270000	1.200000
2749	AuAl2	Bulk	Chen	0	nk	0.220000	0.790000
2750	AuAl2	Thin film	Supansomboon	0	nk	0.300000	1.320000
2889	Au		Rakic-DLF	21	f	0.206600	12.400000
2890	Au		Stewart-DLF	21	f	0.400000	2.000000
2891	Au		Vial-DLF	21	f	0.500000	1.000000
2892	Au		Vial-DF	21	f	0.500000	1.000000
2903	Au		Rakic-BBF	22	f	0.206600	12.400000

[6]:

Au_id_list = [69, 70, 2890, 2891, 2892]
rid.show(Au_id_list)

[6]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
69	Au	Experimental data: bulk, thick film	Johnson	0	nk	0.1879	1.937
70	Au	Experimental data: bulk, thick film	McPeak	0	nk	0.3000	1.700
2890	Au		Stewart-DLF	21	f	0.4000	2.000
2891	Au		Vial-DLF	21	f	0.5000	1.000
2892	Au		Vial-DF	21	f	0.5000	1.000

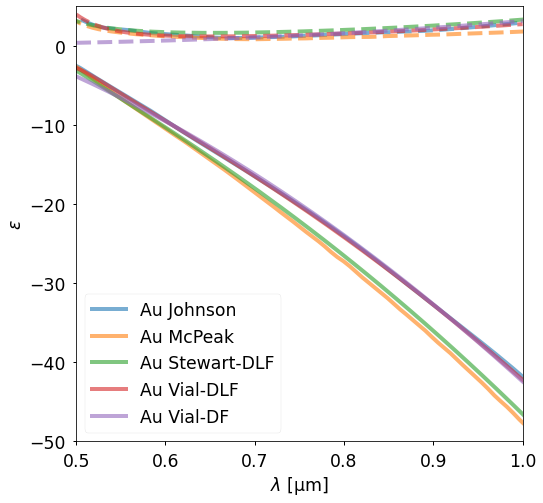

Dielectric function¶

[7]:

for idx in Au_id_list:
    rid.plot(idx, 'eps', alpha=0.6)
plt.ylim(-50, 5)
plt.xlim(0.5, 1.0)
plt.show()

../_images/notebooks_04_examples_11_0.png

Al¶

[8]:

rid.search('Al')

[8]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
17	Al	Experimental data	Rakic	0	nk	0.000124	200.0000
18	Al	Experimental data	Cheng	0	nk	0.225000	1.0000
19	Al	Experimental data	McPeak	0	nk	0.150000	1.7000
20	Al	Experimental data	Larruquert	0	nk	0.077000	0.1135
21	Al	Experimental data	Ordal	0	nk	0.667000	200.0000
...	...	...	...	...	...	...	...
2884	metamaterials		Valentine	0	n	1.200000	1.7750
2888	Al		Rakic-DLF	21	f	0.206600	12.4000
2897	Pd		Rakic-DLF	21	f	0.206600	12.4000
2902	Al		Rakic-BBF	22	f	0.206600	12.4000
2908	Pd		Rakic-BBF	22	f	0.206600	12.4000

380 rows × 7 columns

[9]:

Al_id_list = [17, 18, 19,  2888, 2902]
rid.show(Al_id_list)

[9]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
17	Al	Experimental data	Rakic	0	nk	0.000124	200.0
18	Al	Experimental data	Cheng	0	nk	0.225000	1.0
19	Al	Experimental data	McPeak	0	nk	0.150000	1.7
2888	Al		Rakic-DLF	21	f	0.206600	12.4
2902	Al		Rakic-BBF	22	f	0.206600	12.4

[10]:

ids = rid.catalog.query("'n' in tabulated").index
lens = [len(rid.raw_data.loc[id]) for id in ids]
plt.hist(lens)

[10]:

(array([171.,   1.,   1.,   1.,   1.,   1.,   0.,   1.,   2.,   1.]),
 array([   4. ,  137.7,  271.4,  405.1,  538.8,  672.5,  806.2,  939.9,
        1073.6, 1207.3, 1341. ]),
 <BarContainer object of 10 artists>)

../_images/notebooks_04_examples_15_1.png

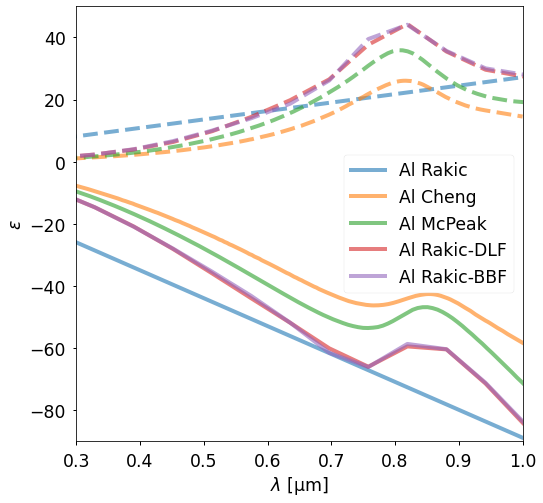

[11]:

for idx in Al_id_list:
    rid.plot(idx, 'eps', alpha=0.6)
plt.xlim(0.3, 1.0)
plt.ylim(-90, 50)
plt.show()

../_images/notebooks_04_examples_16_0.png

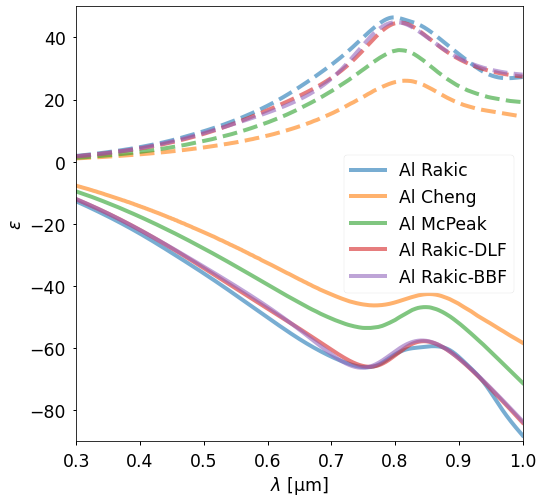

[12]:

wls = np.linspace(0.3, 1.0, 1000)
for idx in Al_id_list:
    m = rid.material({'id': idx})
    m.plot(wls, 'eps', alpha=0.6)
plt.xlim(0.3, 1.0)
plt.ylim(-90, 50)
plt.show()

../_images/notebooks_04_examples_17_0.png

Water¶

[13]:

rid.search('H2O')

[13]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
426	H2O	Liquid water, H2O	Hale	0	nk	0.200000	2.000000e+02
427	H2O	Liquid water, H2O	Wang	0	k	1.200000	1.900000e+00
428	H2O	Liquid water, H2O	Kedenburg	2	k	0.500000	1.600000e+00
429	H2O	Liquid water, H2O	Daimon-19.0C	2	f	0.182000	1.129000e+00
430	H2O	Liquid water, H2O	Daimon-20.0C	2	f	0.182000	1.129000e+00
431	H2O	Liquid water, H2O	Daimon-21.5C	2	f	0.182000	1.129000e+00
432	H2O	Liquid water, H2O	Daimon-24.0C	2	f	0.182000	1.129000e+00
433	H2O	Liquid water, H2O	Segelstein	0	nk	0.033963	1.000000e+07
434	H2O	Liquid water, H2O	Asfar-H2O	0	nk	22.220000	1.733000e+03
435	H2O	Water ice	Warren-2008	0	nk	0.044300	2.000000e+06
436	H2O	Water ice	Warren-1984	0	nk	0.044300	1.670000e+02
437	H2O	Water ice	Kofman-10K	1	f	0.210000	7.570000e-01
438	H2O	Water ice	Kofman-30K	1	f	0.210000	7.570000e-01
439	H2O	Water ice	Kofman-50K	1	f	0.210000	7.570000e-01
440	H2O	Water ice	Kofman-70K	1	f	0.210000	7.570000e-01
441	H2O	Water ice	Kofman-90K	1	f	0.210000	7.570000e-01
442	H2O	Water ice	Kofman-110K	1	f	0.210000	7.570000e-01
443	H2O	Water ice	Kofman-130K	1	f	0.210000	7.570000e-01
444	H2O	Water ice	Kofman-150K	1	f	0.210000	7.570000e-01
445	H2O	Supercooled liquid water	Rowe-240K	0	nk	0.666684	1.039594e+04
446	H2O	Supercooled liquid water	Rowe-253K	0	nk	0.666684	1.039594e+04
447	H2O	Supercooled liquid water	Rowe-263K	0	nk	0.666684	1.039594e+04
448	H2O	Supercooled liquid water	Rowe-273K	0	nk	0.666684	1.039594e+04
449	H2O	Heavy water, D2O	Kedenburg-D2O	2	k	0.500000	1.600000e+00
450	H2O	Heavy water, D2O	Wang-D2O	0	k	1.200000	2.600000e+00
451	H2O	Heavy water, D2O	Asfar-D2O	0	nk	250.000000	2.000000e+03

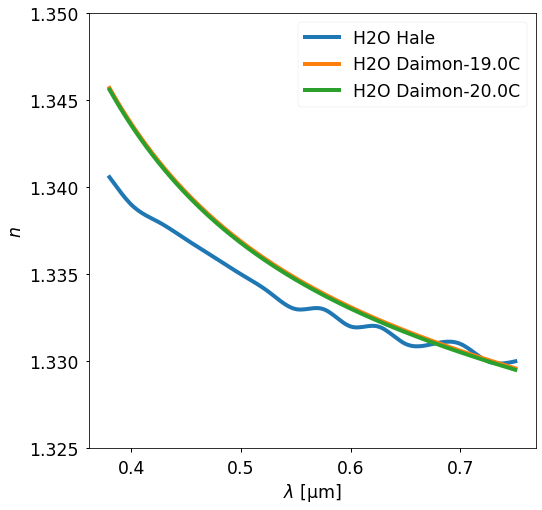

Wavelength dependence of refractive index¶

[14]:

water_id_list = [426, 429, 430]
alpha = 0.6
wls = np.linspace(0.38, 0.75, 200)
waters = [rid.material({'id': idx}) for idx in water_id_list]
for water in waters:
    water.plot(wls, 'n')
plt.ylim(1.325, 1.35)
plt.show()

Extinction coefficient is missing and set to zero.
Extinction coefficient is missing and set to zero.

../_images/notebooks_04_examples_21_1.png

Averaged refractive index¶

[15]:

wls = np.linspace(0.38, 0.75, 200)
water = rid.material({'id': 426})
np.average(water.n(wls))

[15]:

1.333734091651585

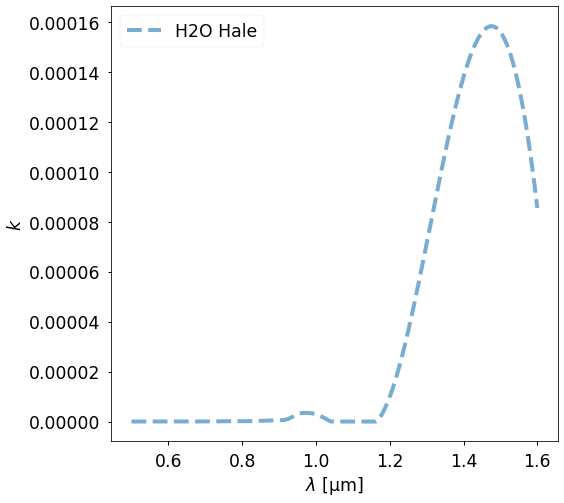

Extinction coefficient¶

[16]:

water = rid.material({'id': 426})
print(water.catalog)
wls = np.linspace(0.5, 1.6, 200)
water.plot(wls, 'k', alpha=0.6)
plt.show()

shelf                                                      main
shelf_name                    MAIN - simple inorganic materials
division                                  O - Oxygen and oxides
book                                                        H2O
book_name     H<sub>2</sub>O, D<sub>2</sub>O (Water, heavy w...
section                                       Liquid water, H2O
page                                                       Hale
path          /home/mnishida/anaconda3/envs/pymwm/lib/python...
formula                                                       0
tabulated                                                    nk
num_n                                                       169
num_k                                                       169
wl_n_min                                                    0.2
wl_n_max                                                  200.0
wl_k_min                                                    0.2
wl_k_max                                                  200.0
wl_min                                                      0.2
wl_max                                                    200.0
Name: 426, dtype: object

../_images/notebooks_04_examples_25_1.png

[17]:

rid.select("0.39 <= wl <= 0.41 & n >= 2.5 & (k <= 0.1 | k != k)")

[17]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
161	SiC	4H-SiC crystal	Wang-4H-o	2	f	0.404700	5.000000
162	SiC	4H-SiC crystal	Wang-4H-e	4	f	0.404700	2.325000
361	GaN	Experimental data	Barker-o	1	f	0.350000	10.000000
363	GaN	Experimental data	Lin-wurtzite	0	n	0.368124	0.991745
364	GaN	Experimental data	Lin-zincblende	0	n	0.385447	0.960283
390	KNbO3		Umemura-γ	4	f	0.400000	5.300000
461	Nb2O5		Lemarchand	0	nk	0.250000	2.500000
482	TeO2		Uchida-e	1	f	0.400000	1.000000
488	TiO2	Nanoparticles	Bodurov	1	f	0.405000	0.635000
600	MoS2	Bulk	Ermolaev-e	0	n	0.360000	1.700000
628	ZnS	Crystal	Debenham	4	f	0.405000	13.000000
630	ZnS	Thin film	Amotchkina	2	k	0.400000	14.000000
631	ZnS	Models and simulations	Ozaki	0	nk	0.221400	1.033200
680	ZnSe	Experimental data	Amotchkina	2	k	0.400000	13.900000
766	BaTiO3		Wemple-o	1	f	0.400000	0.700000
767	BaTiO3		Wemple-e	1	f	0.400000	0.700000

[18]:

gd = rid.load_grid_data()
id_list = gd.query("0.39 <= wl <= 0.41 & n >= 2.5 & (k <= 0.1 | k != k)").index.unique()
rid.show(id_list)

[18]:

	book	section	page	formula	tabulated	wl_min	wl_max
id
161	SiC	4H-SiC crystal	Wang-4H-o	2	f	0.404700	5.000000
162	SiC	4H-SiC crystal	Wang-4H-e	4	f	0.404700	2.325000
361	GaN	Experimental data	Barker-o	1	f	0.350000	10.000000
363	GaN	Experimental data	Lin-wurtzite	0	n	0.368124	0.991745
364	GaN	Experimental data	Lin-zincblende	0	n	0.385447	0.960283
390	KNbO3		Umemura-γ	4	f	0.400000	5.300000
461	Nb2O5		Lemarchand	0	nk	0.250000	2.500000
482	TeO2		Uchida-e	1	f	0.400000	1.000000
488	TiO2	Nanoparticles	Bodurov	1	f	0.405000	0.635000
600	MoS2	Bulk	Ermolaev-e	0	n	0.360000	1.700000
628	ZnS	Crystal	Debenham	4	f	0.405000	13.000000
630	ZnS	Thin film	Amotchkina	2	k	0.400000	14.000000
631	ZnS	Models and simulations	Ozaki	0	nk	0.221400	1.033200
680	ZnSe	Experimental data	Amotchkina	2	k	0.400000	13.900000
766	BaTiO3		Wemple-o	1	f	0.400000	0.700000
767	BaTiO3		Wemple-e	1	f	0.400000	0.700000

[19]:

rid.search('KNbO3')

[19]:

	book	page	formula	tabulated	wl_min	wl_max
id
388	KNbO3	Umemura-α	4	f	0.4	5.3
389	KNbO3	Umemura-β	4	f	0.4	5.3
390	KNbO3	Umemura-γ	4	f	0.4	5.3

[20]:

rid = riip.RiiDataFrame()
KNbO3_alpha = rid.material({'id': 388})
KNbO3_beta = rid.material({'id': 389})
KNbO3_gamma = rid.material({'id': 390})
wls = np.linspace(0.5, 1.6, 200)
KNbO3_alpha.plot(wls, 'n', '-')
KNbO3_beta.plot(wls, 'n', '-')
KNbO3_gamma.plot(wls, 'n', '-')
plt.show()

Extinction coefficient is missing and set to zero.
Extinction coefficient is missing and set to zero.
Extinction coefficient is missing and set to zero.

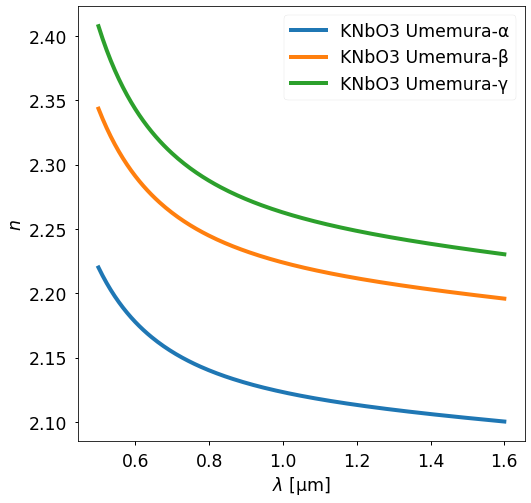

../_images/notebooks_04_examples_29_1.png

Methanol¶

[21]:

rid.search('CH3OH')

[21]:

	book	page	formula	tabulated	wl_min	wl_max
id
854	methanol	El-Kashef	5	f	0.40000	0.8000
855	methanol	Myers	0	nk	1.28244	25.0203
856	methanol	Moutzouris	3	f	0.45000	1.5510
857	methanol	Kozma	5	f	0.23000	0.6407

[22]:

rid.search('Methanol')

[22]:

	book	page	formula	tabulated	wl_min	wl_max
id
854	methanol	El-Kashef	5	f	0.40000	0.8000
855	methanol	Myers	0	nk	1.28244	25.0203
856	methanol	Moutzouris	3	f	0.45000	1.5510
857	methanol	Kozma	5	f	0.23000	0.6407

[23]:

rid.search('methanol')

[23]:

	book	page	formula	tabulated	wl_min	wl_max
id
854	methanol	El-Kashef	5	f	0.40000	0.8000
855	methanol	Myers	0	nk	1.28244	25.0203
856	methanol	Moutzouris	3	f	0.45000	1.5510
857	methanol	Kozma	5	f	0.23000	0.6407

[24]:

import riip
rid = riip.RiiDataFrame()
display(rid.catalog.query("formula==7"))
idx = 428

	shelf	shelf_name	division	book	book_name	section	page	path	formula	tabulated	num_n	num_k	wl_n_min	wl_n_max	wl_k_min	wl_k_max	wl_min	wl_max
id
712	main	MAIN - simple inorganic materials	Si - Silicon, silicides and silicates	Si	Si (Silicon)	Crystalline silicon	Edwards	/home/mnishida/anaconda3/envs/pymwm/lib/python...	7	f	0	0	2.4373	25.0	2.4373	25.0	2.4373	25.0

[25]:

print(rid.read(712))

# this file is part of refractiveindex.info database
# refractiveindex.info database is in the public domain
# copyright and related rights waived via CC0 1.0

REFERENCES: "D. F. Edwards and E. Ochoa , Infrared Refractive Indexes of Silicon, <a href=\"https://doi.org/10.1364/AO.19.004130\"><i>Appl. Opt.</i>, <b>19</b>, 4130-4131 (1980)</a>"
COMMENTS: "26 °C, crystal orientation <111>; 3-4 Ω-cm, n-type (phosporous-dopped)"
DATA:
  - type: formula 7
    wavelength_range: 2.4373 25
    coefficients: 3.41983 0.159906 -0.123109 1.26878E-6 -1.95104E-9

[26]:

rid.references(712)

[26]:

D. F. Edwards and E. Ochoa , Infrared Refractive Indexes of Silicon, Appl. Opt., 19, 4130-4131 (1980)

[27]:

import riip
rid = riip.RiiDataFrame()
rid.catalog['book'].apply(len).sort_values().tail(80)

[27]:

id
1024    19
1025    19
1026    19
1027    19
1012    19
        ..
931     28
2827    28
927     29
928     29
947     39
Name: book, Length: 80, dtype: int64

[ ]:
